1000 S. ETIWANDA AVE. ONTARIO, CA 91786
EAST PROJECT –

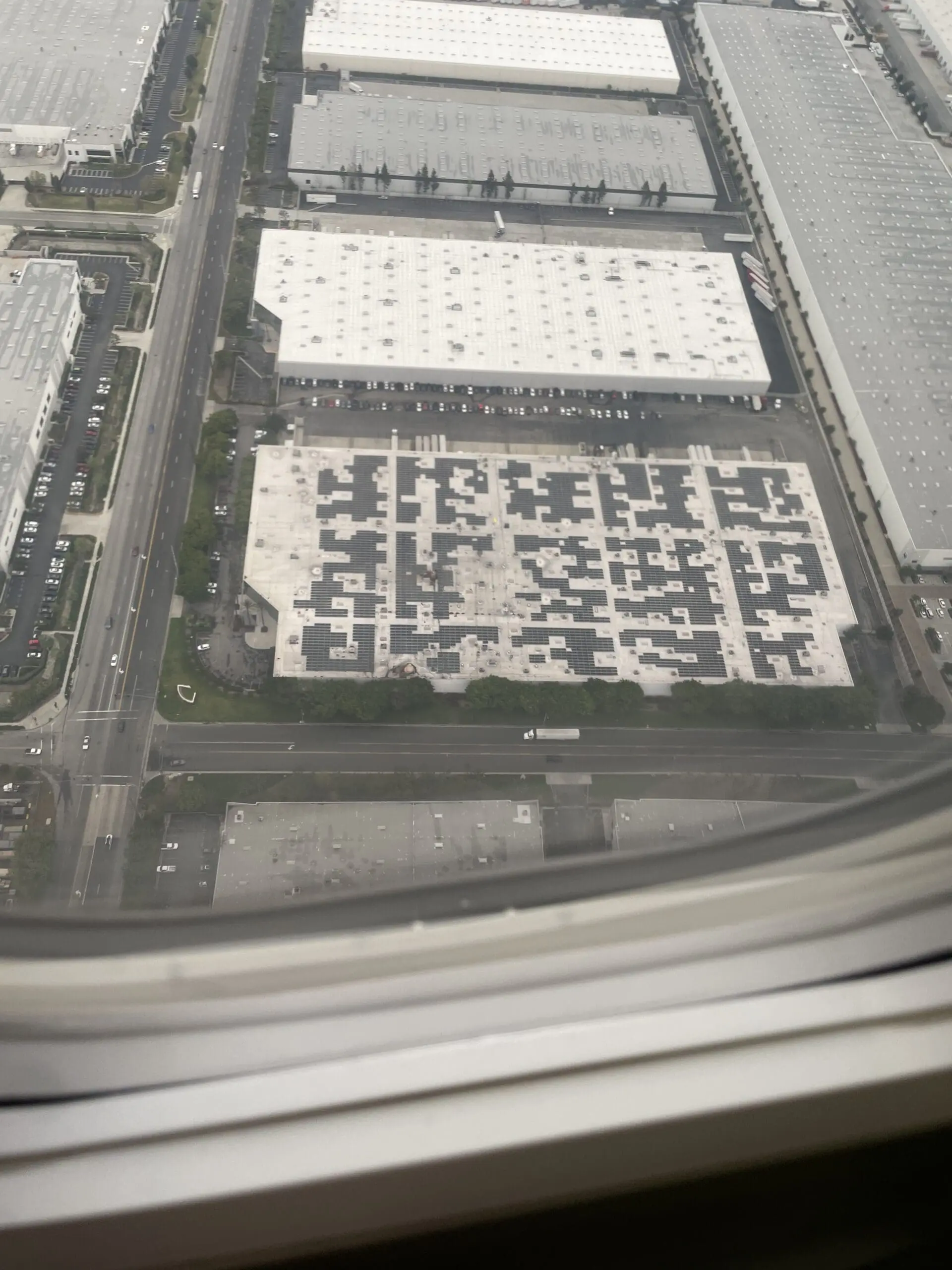

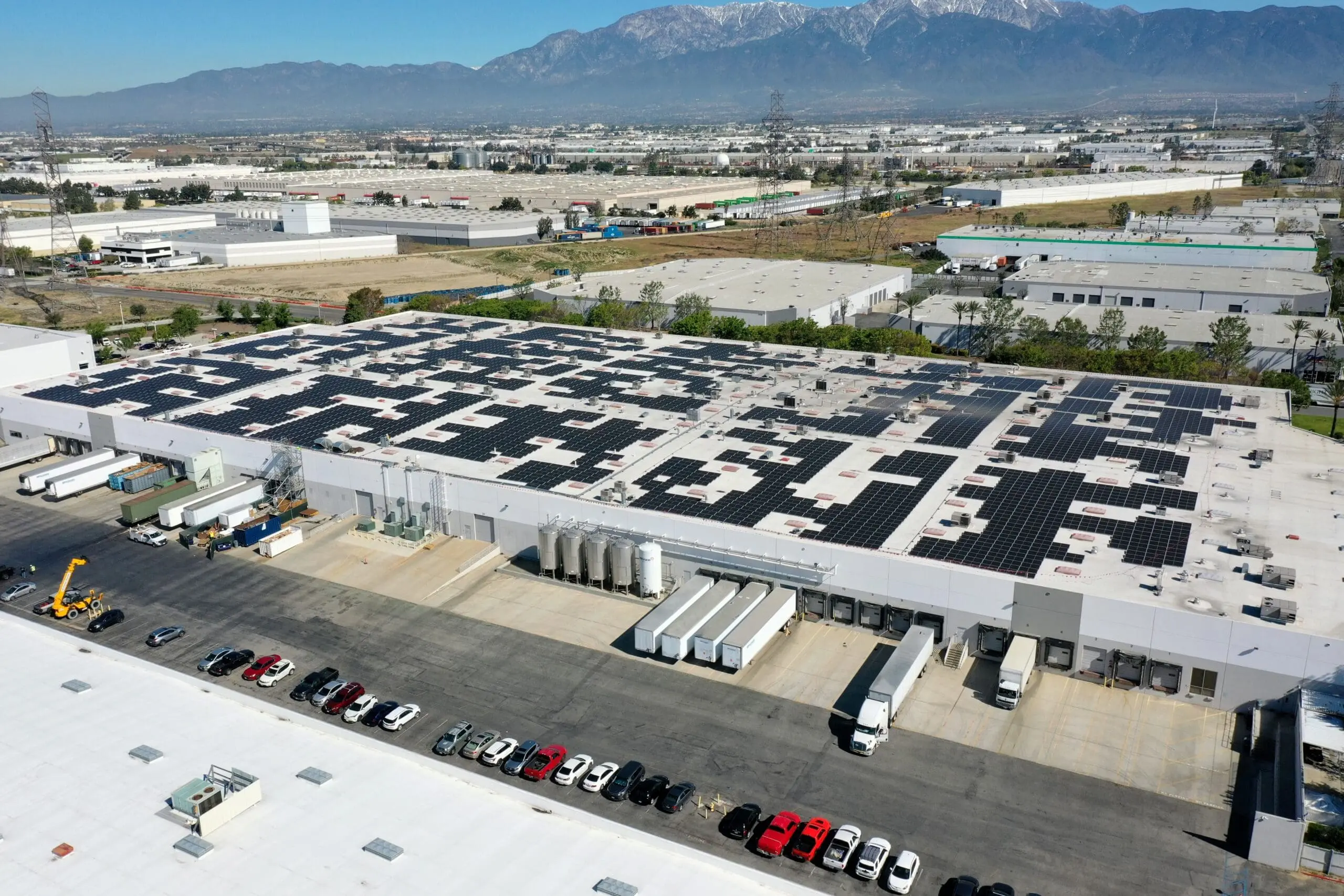

Ballasted 1,944kWDC rooftop Photovoltaic system consisting of:
2160 – Talesun TD6I72M-450 Modules
13 – Chint Power Systems SCA60KTL-DO-US-480 Inverters w/Rapid Shut Down
Panel Claw Racking
AlsoEnergy Data Acquisition System (DAS)
1 – 225A, 480Y/277V, 4W, NEMA 3R Solarpanel Board
3 – 400A 480Y/277V, 4W, NEMA 3R Solarpanel Boards
1 – 1600A, 480V, 3P, 4W, NEMA 1 AC ULD Disconnect
1 – 1600A, 48Y/277V, 4W, NEMA 3R Solar Switchboard
WEST PROJECT –
Ballasted 1,944kWDC rooftop Photovoltaic system consisting of:
2160 – Talesun TD6I72M-450 Modules
13 – Chint Power Systems SCA60KTL-DO-US-480 Inverters w/Rapid Shut Down
Panel Claw Racking
AlsoEnergy Data Acquisition System (DAS)
1 – 225A, 480Y/277V, 4W, NEMA 3R Solarpanel Board
3 – 400A 480Y/277V, 4W, NEMA 3R Solarpanel Boards
1 – 1600A, 480V, 3P, 4W, NEMA 1 AC ULD Disconnect
1 – 1600A, 48Y/277V, 4W, NEMA 3R Solar Switchboard

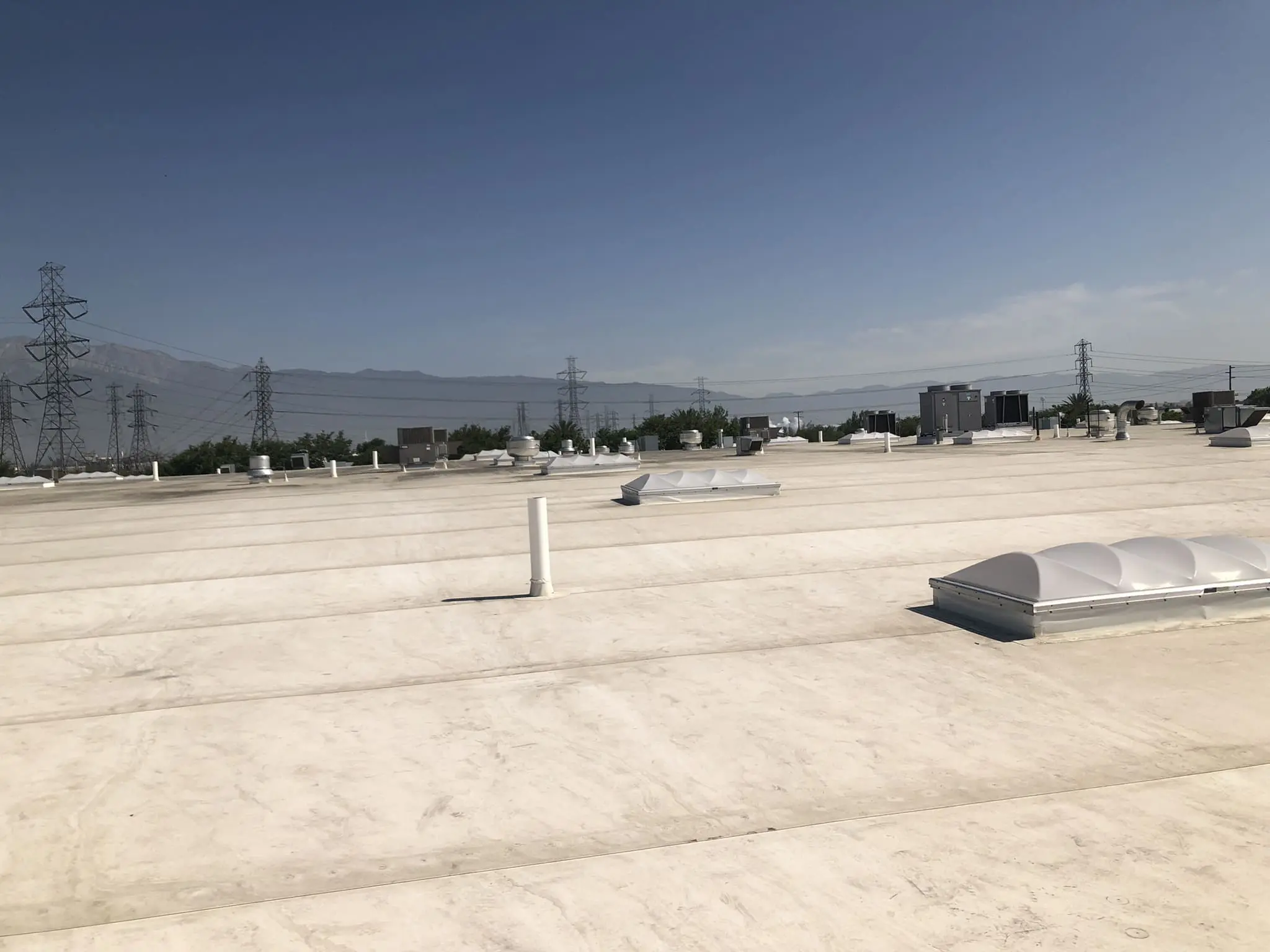

Stronghold self-performed 100% of this project. Existing building is a concrete tilt up with Johns Manville built-up roofing mineral cap roof. PV racking system was ballasted to maintain roof integrity and manufacturer warranties. The added solar to the building will reduce the customers dependency on the grid for its electrical needs. By providing their own clean energy through renewables the customer is also reducing their carbon footprint. The PV system was designed to offset as much of the customers electrical needs while still taking into account current available roof space as well as future HVAC units that will be installed. Stronghold had to account for shading of all existing infrastructure obstructions and design the system in such manner that system output was maximized.
